attocube attoDRY800

Warming up the cryostat and unloading a sample

  1. On the cryostat screen, start bringing the cryostate to room temperature by selecting Actions / Sample exchange
  2. Wait until the cryostat stabilizes to room temperature (~293 K)
  3. Connect the  nitrogen gun to the inlet
  4. Unscrew the outer bolts on the cryostat base

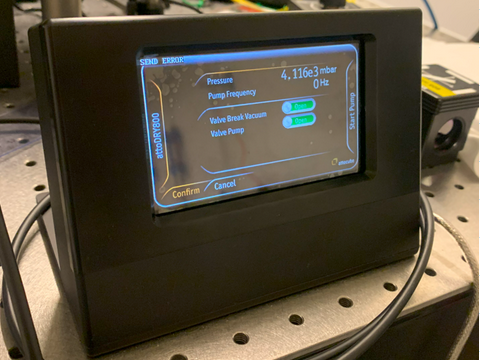

  5. Open both valves with the integrated screen Pasted image 20260205135945.png
  6. Slowly pump nitrogen in, until you hear the shroud popping.
  7. Remove the four screws at the shroud base
  8. (Requires two people) Take the tower off and place it on the clean gray pedestal Pasted image 20260205135849.png

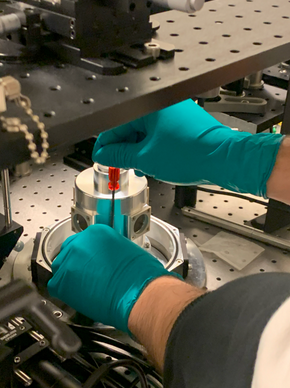

  9. Remove the screws from the inner shroud Pasted image 20260205135815.png

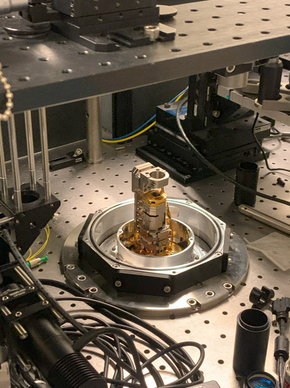

  10. Remove the objective and store it in its cup Pasted image 20260205135802.png

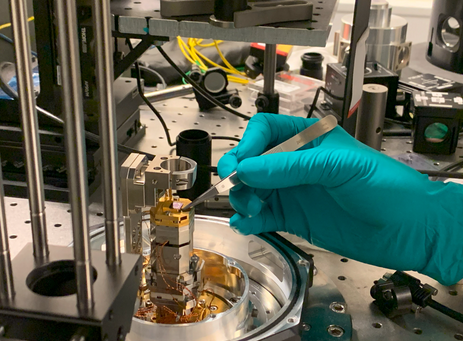

  11. Unload the sample Pasted image 20260205135748.png

Loading a sample and cooling the cryostat

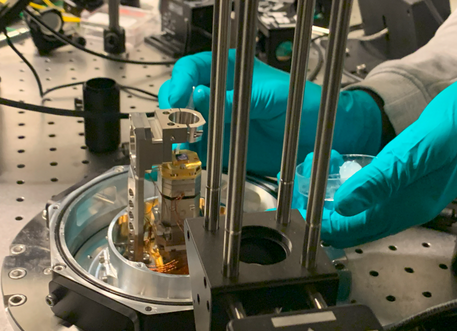

  1. Place some grease on the sample holder and place the new sample Pasted image 20260205135734.png
  2. Put the objective back
  3. Place the inner shroud and screw it in place
  4. (Requires two people) Place the outer shroud back and screw it in place
  5. (Recommended) Flush the chamber up to three times
  6. Select Actions -> Base temperature
  7. Check that the pressure drops to 103 mbar within ~30 minutes.
